Astra Quanta 4 GHz Models
- Frequency Range: 4000 – 5000 MHz
- Throughput: up to 650 Mbps net
- Power Consumption: up to 15W
Q4-E
- 2x N-type (F) connectors for external antenna
- Combo: 1x Gigabit Ethernet port (RJ45), 1x SFP
Description : Quanta 4 Q4-E, 4 GHz point-to-point unit, net throughput up to 650Mbps, 2x N-type (F) connectors for external antenna
Net throughput: up to 650 Mbps
Distances: up to 200 km
Net throughput: up to 650 Mbps
Distances: up to 200 km
Radio technology: MIMO 2x2 (SC-FDE)
Modulation coding :from QPSK 1/4 to QAM256 7/8
schemes
Transmit power : up to 27 dBm
Receiver sensitivity: down to -101 dBm
Frequency range : 4000-5000 MHz
Channel width : 3.5, 5, 7, 10, 14, 15, 20, 28, 30, 40, 50, 56 MHz
Duplex scheme: TDD
Wired Interfaces: 1x Combo port Gigabit Ethernet/SFP
Consumption: up to 15 W
Consumption: up to 15 W
Power options : 90-240 VAC ~ @ 50/60 Hz, +-43..56 VDC
Outdoor Unit (ODU) :180 x 190 x 86 mm, 1.2 kg

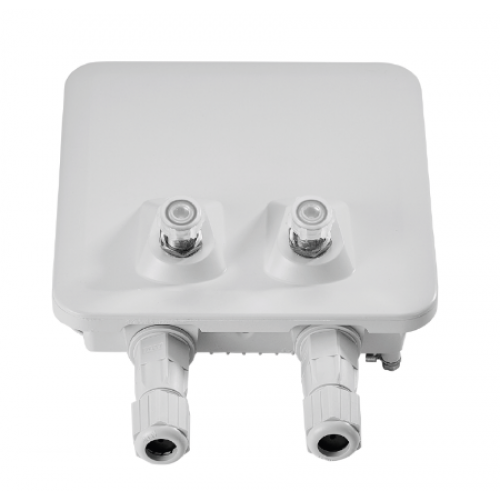

Astra Quanta 4 GHz Q4-E
- Brand: ASTRA Wireless
- Product Code: Astra Quanta 4 GHz Q4-E
- Reward Points: 145
- Availability: In Stock
-
$1,658.50
This product has a minimum quantity of 2
Tags: Astra Quanta 4 GHz Q4-E
