Astra Quanta 5 GHz Models
- Frequency Range: 4900 – 6000 MHz
- Throughput: up to 650 Mbps net
- Power Consumption: up to 15W
Q5-23
- 23 dBi dual-pol integrated antenna 10×10 deg
- Combo: 1x Gigabit Ethernet port (RJ45), 1x SFP
Description : Quanta 5 Q5-23, 5 GHz point-to-point unit, net throughput up to 650Mbps, integrated dual-pol antenna, 23 dBi, 10x10 deg
Net throughput: up to 650 Mbps
Distances: up to 40 km
Net throughput: up to 650 Mbps
Distances: up to 40 km
Radio technology: MIMO 2x2 (SC-FDE)
Modulation coding :from QPSK 1/4 to QAM256 7/8
schemes
Transmit power : up to 27 dBm
Receiver sensitivity: down to -101 dBm
Frequency range : 4900-6000 MHz
Channel width : 3.5, 5, 7, 10, 14, 15, 20, 28, 30, 40, 50, 56 MHz
Duplex scheme: TDD
Wired Interfaces: 1x Combo port Gigabit Ethernet/SFP
Consumption: up to 15 W
Consumption: up to 15 W
Power options : 90-240 VAC ~ @ 50/60 Hz, +-43..56 VDC
Outdoor Unit (ODU) :305 x 305 x 66 mm, 1.75 kg

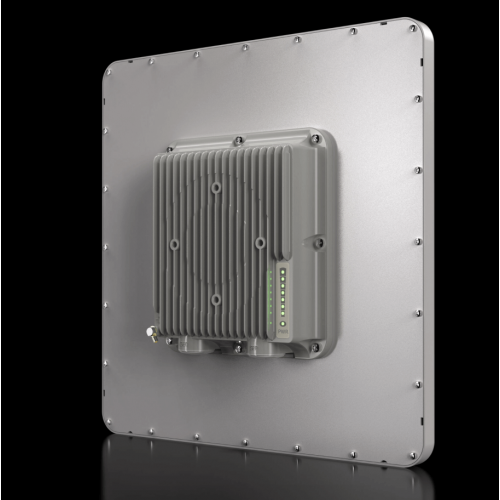

Astra Quanta 5 GHz Q5-23
- Brand: ASTRA Wireless
- Product Code: Astra Quanta 5 GHz Q5-23
- Availability: In Stock
-
$1,605.00
This product has a minimum quantity of 2
