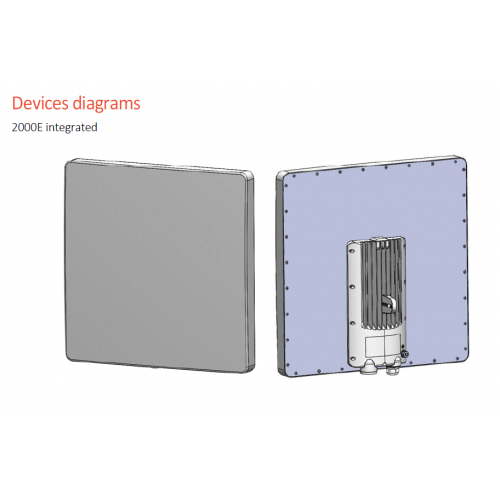

RADWIN 2000 E 2.5Gbps Point-to-Point  (RW-2U50-E1MM)

Product overview

RADWIN 2000 E is a premium, ultra-capacity Point-to-Point (PtP) solution for backhaul, access and for

connecting a wide variety of bandwidth demanding applications.

RADWIN 2000 E Point-to-Point is an outdoor radio that works in the 4.9 to 6GHz band and delivers up to 2.5Gbps.

The radio ensures outstanding performance and the highest possible throughput in congested spectrum,

using a field-proven air interface. The unit comes with an integrated antenna that assures best interference

mitigation via remarkably low side lobe levels. RADWIN 2000 E exceptionally powerful packet-switching

performance facilitates high short packet traffic. It also leverages upon the industry-strong encryption scheme

(AES 256), to ensure top level security. RADWIN 2000 E enables radio collocation using a built-in GPS, to save

upon hub tower space when deployed in the hub site. IP67 compliant, RADWIN 2000 E is extremely durable.

Product Highlights

» Up to 2.5Gbps net aggregated1              » 4.9-6.06 GHz

» Ch. BW 20 / 40 / 80 / 160 MHz1              » Integrated antenna - 24dBi, -22dB SLL

» Up to 4096QAM                                         » Latency (avg) < 2.5msec

» Up to 120 km / 75 miles                           » Adaptive modulation

» Dynamic CBW selection                            » Configurable UL/DL ratio

» TDD synchronization for colocation2     » AES256 over-the-air encryption

» 8 queues QOS (Diffserv/802.1P) 2           » Built-in GPS

» Highly durable - IP 67                                » GPS-based regulation identification
