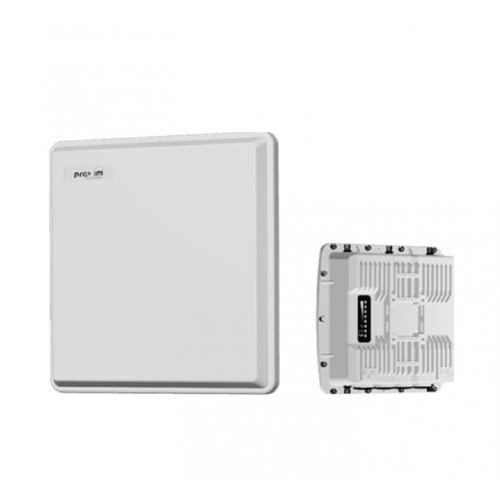

Proxim StratumTM X5 SX5-1042A-WD

The Stratum™ X5 is the first in a new series of ultra-high-performance point-to-point and
Point to Multipoint radio endpoints. The Stratum™ X5 is a 5 GHz, MIMO 4x4 point-to-point
radio with greater than 1.5 Gbps throughput, and ideally suited to high capacity backhaul
applications The 4x4 MIMO radio offers two significant benefits : • In MIMO 4x4:4 mode,
 a20MHz channel will double the throughput compared to the typical MIMO 2x2:2 point-to
-point systems available today.

 • In MIMO 4x4:2 mode, antenna diversity enables two mirrored data streams that improve
   radio stability in harsh environments. Other Features Include :

• Throughput >1.5 Gbps TCP and 1.8 Gbps UDP

• Wide Band Radio - 5.150 – 5.850 GHz

• 2.5 Gbps Ethernet with optional 10 Gbps SFP+ optical transceiver cage

• AES 128-bit encryption is upgradeable to 256-bit

• Full tilt and swivel mounting kit included.

Flexible Antenna Options

The SX5-1042A is a flexible variant that includes an integrated quad polarity panel antenna, plus software selectable connectors for external antennas.

Advanced Interference Management Proxim ClearConnectTM combines multiple dynamic technologies and delivers the best interference management solution

Flexible and Secure Management Options Management options include Proxim BlueConnectTM; our Bluetooth-enabled mobile management application; TLS 1.3 web GUI, SSH 2.0 CLI, and SNMP v3 for ProximVision Advanced or other network management solutions.

Rugged Reliability Stratum x5 uses an IP67-rated metal enclosure to ensure years of reliable service in harsh environments, including high winds, high salt, and temperature extremes
