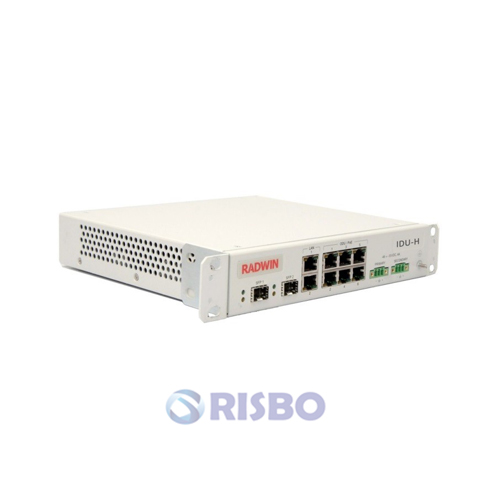

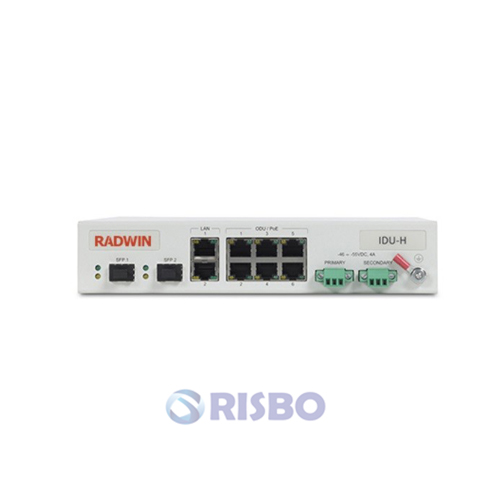

IDU-H Aggregation unit

RADWIN's IDU-H (RW-7300-2006) is part of the RADWIN Indoor Unit Portfolio. The IDU-H product line comprises of carrier grade 1U 19'' rack mounted half width indoor devices. An IDU-H aggregates Ethernet traffic for up to six ODUs. It delivers their traffic to two high speed uplink Ethernet ports and two SFP ports.

IDU-H aggregates Ethernet traffic for up to six RADWIN 2000 C-Series and B-Series Radios and/or RADWIN 5000 HBS radios.

Product Condition	New
Manufacturer part number	RW-7300-2006
Manufacturer	Radwin
Specifications

Ethernet Interface

PoE Interfaces 6 x PoE in legacy mode ports (10/100/1000Mbps), up to 25W per port, Supports all RADWIN ODUs* Ethernet ports 2 x RJ-45 PHY ports of 10/100/1000 Mbps Based-T Ethernet Auto-negotiation 10/100/1000Mbps SFP Interfaces 2 x SFP ports of 1000 Mbps (standard MSA) LAN Interface Line Impedance 100Ω MAC Address Entries Up to 1K MAC Address entries (same as in IDU-C) Maximum Frame Size 2048 Bytes Latency 3 ms

Mechanical

Dimensions 1U x Half 19” width Weight <1.5 kg

Power

Power Feeding 44VDC - 56VDC, Dual redundant inputs, 3 pin female DC connector ** Power Consumption 150W @ Maximal Power feeding

Environmental

Operating Temperatures -40°C to 60°C / -40°F to 140°F Humidity 90% non-condensing Storage Temperatures -40°C to 70°C / -40°F to 158°F, Humidity 95%

Safety

TUV UL/EN/IEC 60950 CAN/CSA 60950 C22.2

EMC

FCC 47CFR Class B, Part15, Subpart B ETSI EN 300 386 V1.3.2; 301 489-4 V1.3.1; 301 489-1 V1.4.1; 55022:1998; 61000-3-2:2000; 61000-3-3:1995; 55024:1998 CAN/CSA-CEI/IEC; AS/NZS CISPR 22-02 * Doesn't support RADWIN 2000 A series and RADWIN HSU 505 series ** AC power adapters with plugs for various countries can be ordered separately (see product RW-9921-007X in RADWIN Product Catalog).
